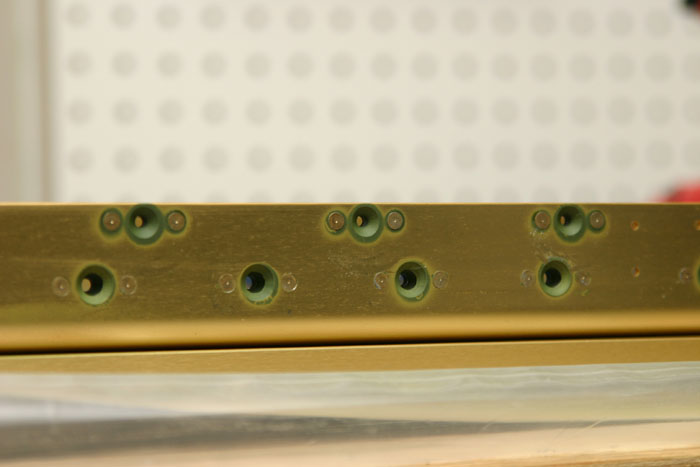

The next
thing you do is attach the nutplates on the bottom of the spar that
will help attach the inspection plates to the underside of the wing.
In this picture these nutplates are the three on top.

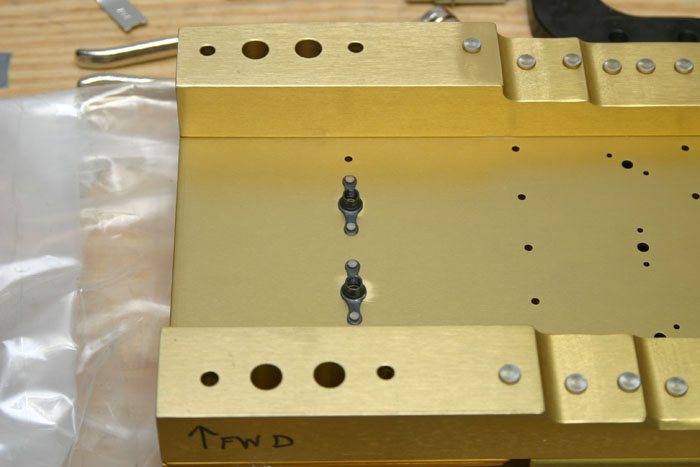

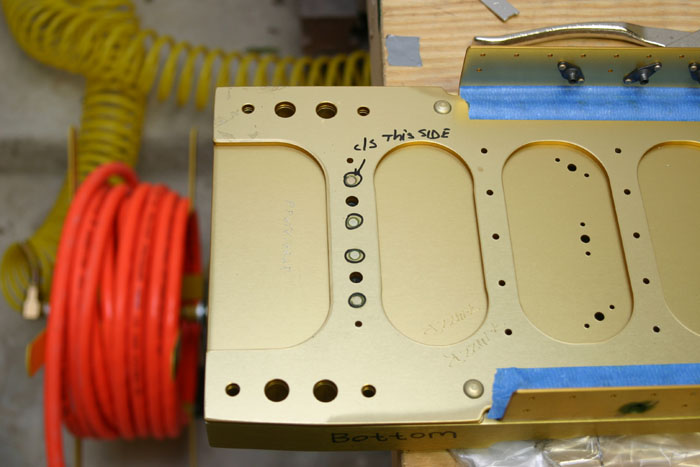

There
are three inspection plates under the wing that you can unscrew
to take a look around periodically. These are attached to the spar
with #6 screws instead of the #8 screw nutplates I was working with
earlier.
|
